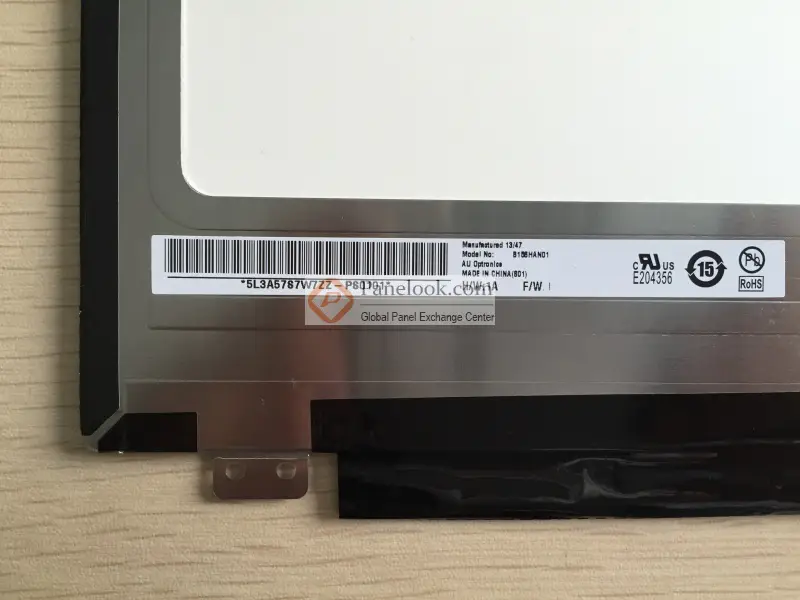

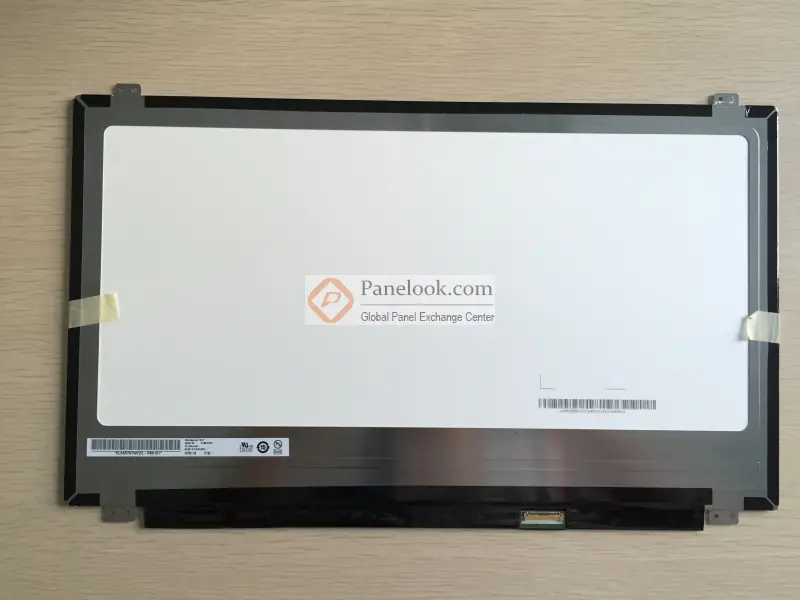

B156HAN01.2 Αντικατάσταση πάνελ LCD AUO

Εικόνες

Προδιαγραφές

Brand：AUO

Condition:Almost new
Model：B156HAN01.2 (AUO12ED) 14 Compatible
Diagonal Size：15.6 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1920(RGB)×1080[FHD]
Configuration：RGB Vertical Stripe
Active Area：344.16(H)×193.59(V) mm
Outline Dim.：359.5(H)×223.8(V)×3.2(D) mm
Bezel Area：-
Treatment：Antiglare
Luminance：300 cd/m2 (Typ.)
Contrast Ratio：700:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：25 (Typ.)(Tr+Td)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Operating Mode：AHVA, Normally Black, Transmissive
Support Color：262K 72%(CIE1931)
Light Source：WLED, 15K hours, With LED Driver
Form Style：Slim (PCBA Flat, Depth ≤3.2mm)
Designed For： Laptop,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 30 pinseDP (2 Lanes), Connector
Power Supply：3.3V (Typ.)
Environment：Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
